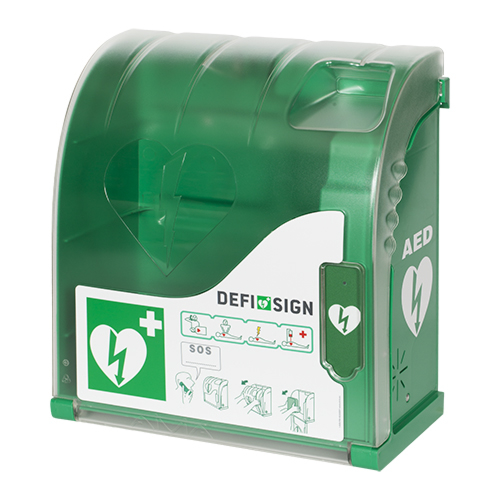

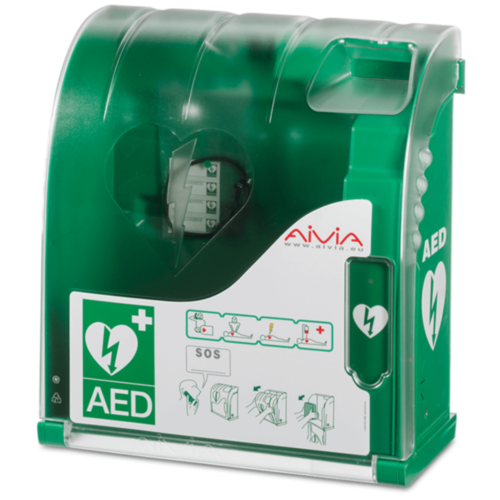

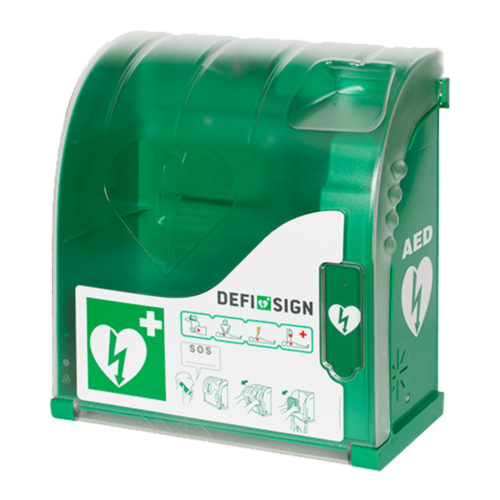

DefiSign / Aivia 100 AED Wall Cabinet

The DefiSign / AIVIA 100 indoor wall cabinet:

  • Polycarbonate cover
  • ABS chassis
  • Access to the AED is protected by coated seals.
  • Audible alarm, activated when the cover opens.
  • LED’s provide day/night lighting,automatic luminosity detection.
  • Visual alarm (flashing red LED’s).

€187,00 €187,00
In stock, available immediately
Product Description

DefiSign / Aivia 100 AED Wall Cabinet

The DefiSign / AIVIA 100 may be installed indoors. Combining strength and lightness Aivia is composed of two distinct parts:

  • The polycarbonate cover
  • The ABS base

These materials are well known in the automobile industry, among others, giving excellent shock resistance properties. Polycarbonate is used in vehicle headlights and ABS for bumpers.

Markings

On the front face are shown the survival sequence and three clear pictograms with instructions for use. On the sides are AED (English) and DAE (Latin) separated from the logo for the defibrillator (heart broken by an electric spark).

Features

  • Day/night lighting of the AED compartment by leds with automatic luminosity detection.

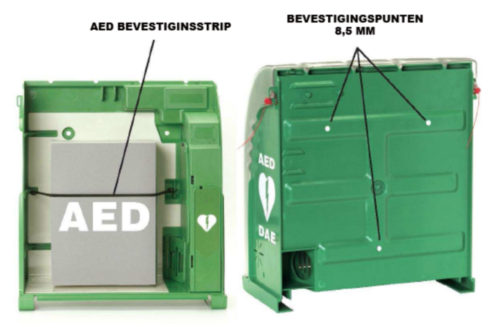

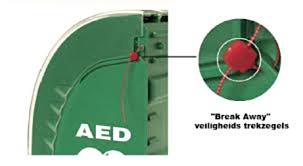

  • Access to the AED is protected by plastic coated seals.
  • Opening the cover automatically triggers a visual alarm (flashing red leds).
  • The audible alarm, optional, is activated when the cover opens (95dB).
  • Location Powered with 4 disposable batteries (4xLR20 delivered),

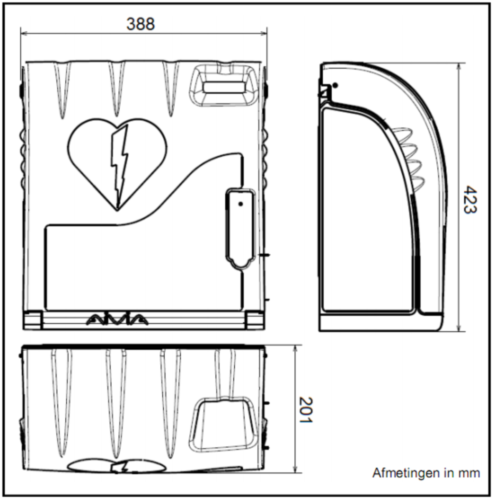

Dimensions: H = 423 mm, L = 388 mm, P = 201 mm, Weight = 3.5 kg

Warranty

AIVIA cabinets supplied after January 2012, have a two year factory warranty

Specifications
Specifications
Product name DefiSign / Aivia 100 AED Wall Cabinet
SKU DS-100
Manufacturer
Aivia
Cabinet use Indoor
Warranty 2 years
Weight 1.000000
User Manual

Click here to see the user manual
