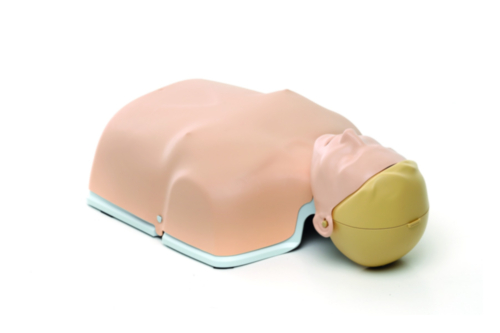

Laerdal Little Anne Stackable Manikin (Light)

Laerdal Little Anne Stackable Manikin (Light)

The Laerdal Little Anne Stackable Manikin (Light) allows for easy transportation because they are light and can be stacked on top of each other. To make transportation even easier you can store the manikin(s) in the Laerdal stackable Little Anne Manikin Trolley, which has been specially designed for the transport of these manikins. The trolley even offers additional storage space for smaller items.

Other Stackable models often use regular springs which makes compression difficult. The Little Anne stackable manikin uses leaf springs beneath the chest plate, to make the compressions feel more natural. The manikin easily connects to the QCPR app through Bluetooth connectivity. The manikin will automatically connect after the initial connection has been made. You can connect multiple manikins and monitor them all at the same time.

Included:

• 1x Laerdal Little Anne Stackable Manikin (Light)
• 1x Laerdal Stackable Little Anne Face Skin (Light)
• 11x Laerdal Stackable Little Anne Filters
• 2x AA Batteries (non-rechargeable)
• 6x Manikin wipes
• 1x User guide
• 1 Year warranty

Laerdal Little Anne stackable manikin specifications   

Lifetime expectancy

• Able to withstand 50,000 compressions.   
• The lungs are designed to last around 3 months or withstand around 100,000 ventilations.

Weight and dimensions

• Weight 2 kg.   
• 64cm x 37cm x 21.5cm.    

Anatomy

• Adult torso model (Light)
• Realistic facial features 
• Realistic compliance for ventilations and compressions 
• Chest compression 
• Landmarks for compression point location. 
• Ventilations with visible chest rise. 
• Head tilt manoeuvre - natural obstruction of the Airway 
• Airway closes when neck is underextended. 
• Jaw thrust manoeuvre - movable jaw. 
• Nasal passages are open (nose pinch is required for ventilation training) 

Batteries  
2 AA batteries are included. The manikin is also suitable for use with rechargeable batteries. 


Spare parts   

You can disassemble the manikin completely, which makes it easier to clean and allows you to perform simple replacement and maintenance tasks by yourself. All of the removable components can be ordered separately, giving the manikin a longer lifetime and preventing material waste.


Sustainable airway filters  

This innovative filter allows you to hygienically reuse the lungs by filtering the administered air before it reaches the lung. The filter needs to be replaced after each training session and the lungs only need to be replaced around every 3 months. This is not only a more sustainable option, but also very cost efficient.

Sustainable Materials 

The little Anne stackable manikin is designed with a sustainable mindset. The manikin is made of 60% recycled materials and doesn’t include any rubber latex. Every year 994,000 airway bags are disposed of, which means that all this unrecyclable material (PVC) ends up in land fill. The development of the airway filter will dramatically reduce the carbon footprint of this manikin.   


Feedback   

The Manikin uses QCPR sensors to measure the performance of the student. The following actions are measured and can be reviewed in the QCPR training app:

• Compression rate and depth.   
• Ventilation rate and amount.   


Laerdal QCPR Training app   

You can monitor the measured feedback in the Laerdal QCPR training app, which provides clear and understandable indications of the user’s real time resuscitation performance. You can easily download the app to your preferred device (tablet or phone). In the app you can monitor multiple manikins at the same time. If you wish, you can change the training settings in the app to allow a practice scenario with a defibrillator trainer.

You can enhance the quality of the training even further by adding the SkillGuide tool to your training set-up. This handy little tool can be connected to the manikin and allows you and your student to monitor real time feedback simultaneously. Another advantage is that this tool monitors the hand placement unlike the app which does not measure this. You can find the SkillGuide tool here.    
 

Compliances   

• CE registered       
• Guidelines compliant
