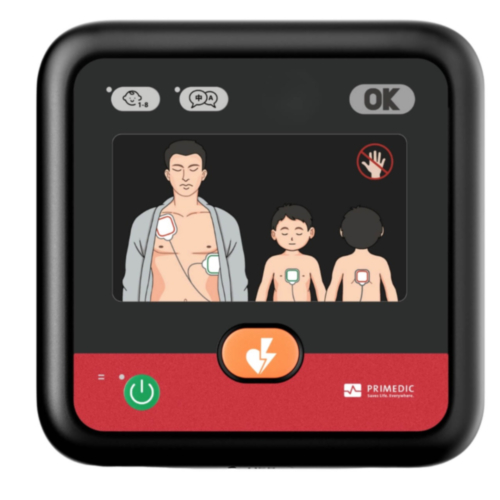

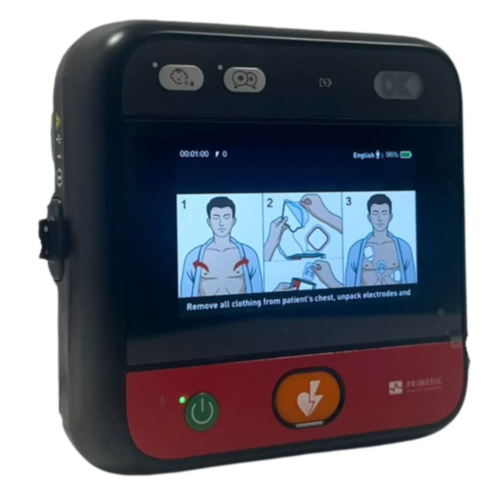

Primedic Heartsave myPAD Display AED Semi-Automatic

Compact, lightweight, and equipped with smart features

Measuring just 15x15 cm and weighing approximately 1.1 kg, this AED is extremely portable. Yet the device is packed with smart technology. It features clear voice guidance, an intuitive user interface, and an ECG function that displays the heart rhythm in real time. This makes the device suitable not only for laypeople but also for professional emergency responders.

Thanks to the child button, the energy level is automatically adjusted for safe use on young victims.

Suitable for many locations such as:

• Swimming pools and saunas
• Sports clubs
• GP practices and healthcare settings
• Industrial workplaces (dusty/noisy)
• Campsites
• Boats and marinas
• Construction sites
• Offices, festivals, and public events

Semi-automatic AED

This AED is available in a semi-automatic version, in which the first responder manually presses the shock button after a shock recommendation. A fully automatic version is also available, in which the AED administers the shock itself. Both versions are designed to be quick and easy to operate. Learn more about the differences on this page.

Versatile

The robust housing and high IP66 rating make this AED best-in-class and highly suitable for use in demanding environments. Think of industrial environments with a lot of dust or noise, but also damp locations such as swimming pools, saunas, and marinas. Its compact size and sturdy design also make the AED ideal for use on campsites, sports fields, construction sites, and in public buildings or at events.

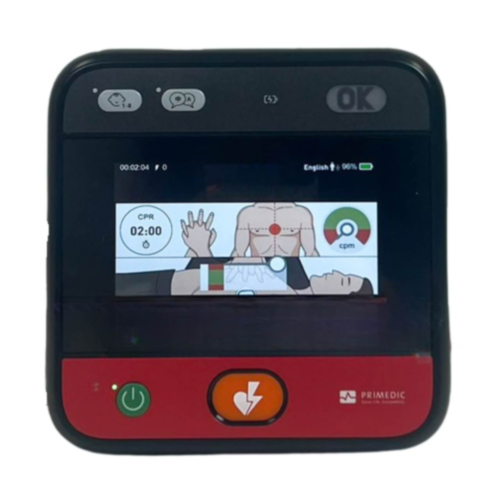

Real-time ECG display

The integrated ECG function clearly shows the patient's heart rhythm on the color display. This provides first responders with immediate visual information, which can be essential for assessing the situation and determining the next steps. The ECG display supports both professional users and first responders in making quick, informed decisions during CPR.

Control over the shock

As a semi-automatic device, this AED independently analyzes the patient's heart rhythm. If a shock is needed, the device gives clear shock advice. The first responder must then press the shock button themselves to deliver the shock. This provides extra control during CPR and can be helpful in situations where the user wants to deliver the shock consciously.

Stepwise shock protocol with child mode

The AED uses a stepwise shock protocol with energy levels of 150, 170, and 200 joules. This allows the device to adapt to the situation and increase the energy if necessary. The child button automatically switches to 50 joules per shock, which is safe for children under 8 years of age or weighing less than 25 kg. No separate child electrodes are required.

Highly durable thanks to IP66 rating

The high IP66 rating means that this AED is fully protected against dust and powerful water jets. This makes it ideal for use in harsh weather conditions. Whether in a dusty workshop, an indoor swimming pool, or a busy sporting event, this AED will continue to function reliably.

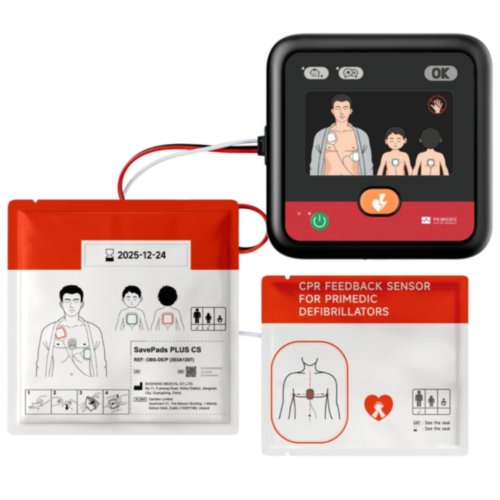

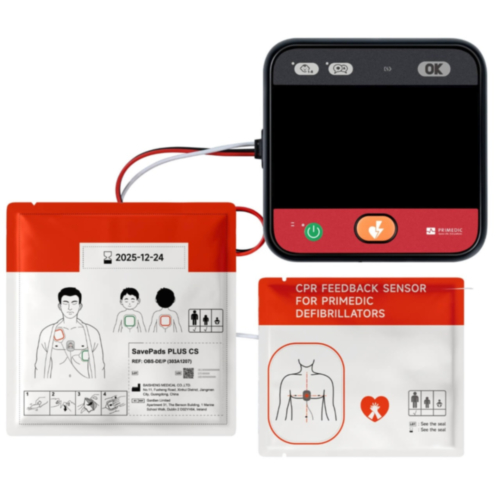

Live CPR feedback

Electrodes are included with this AED that provide live feedback on the depth and pace of chest compressions. This helps first responders to immediately improve their technique and increase the victim's chances of survival. The feedback is easy to follow and supports both trained and untrained users.

Low maintenance

Both the battery and the electrodes have a service life of approximately 5 years. This means that you only need to replace the parts once during the entire service life of the device when the AED is in standby mode under the prescribed conditions. This makes this AED very maintenance-friendly and financially attractive in the long term.

Made in Germany

Made in Germany and built to European standards, this Primedic AED is renowned for its quality and reliability.

Dynamic adaptation to the situation

Whether you are in a quiet room or a noisy environment, this AED automatically adjusts to the right light and sound level.

Quickly switch between languages

The myPAD AED comes with a standard language pack. This pack consists of the following languages: English, Polish, Romanian and French. If you would like to have a different language combination on your AED, please contact us.

The integrated language button allows you to switch between different languages with ease. This is ideal for locations with international visitors or users, such as airports, holiday parks, or large events.

Daily self-test

The AED automatically performs a daily self-test. This checks the battery, electrodes, and internal functions. The status is easy to read on the built-in status display. This way, you can always be sure that the AED is ready for use when it matters.

What does the Medisol product specialist say?

"As a product specialist, I am very impressed with the Primedic Heartsave myPAD Semi-automatic, especially because of its very small size and weight of only 1.1 kg, which makes it considerably more compact than most other AEDs. This model is equipped with a clear color display and an ECG function for displaying the heart rhythm. Together with its high water and dust resistance, child mode, and language button, this AED offers an exceptional combination of mobile use, professional functionality, and ease of use."

Standard delivery includes:

• Primedic Heartsave myPAD Display AED (semi-automatic)
• Battery
• Electrodes
• Carry case
• English manual

Extras from Medisol, free with your order:

• Free DefiSign AED rescue kit
• Free AED sticker
• Free shipping
• 10-year warranty (8 years factory + 2 years extra via Medisol)

Would you like more information about this AED? Please contact us.
